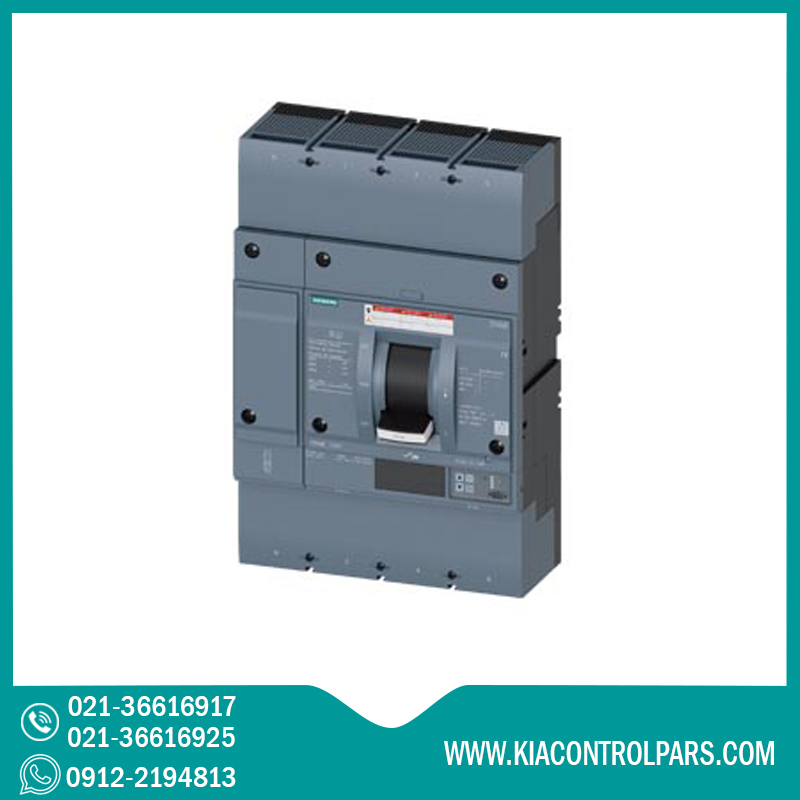

کلید اتوماتیک 4 پل 800 آمپر زیمنس 3VA6580-7JQ46-0AA0
| Product | |||||
| Article Number | 3VA6580-7JQ46-0AA0 | ||||
| Product Description | circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 4-pole, line protection ETU560, LSIG, In=800 A overload protection Ir=315 A …800 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection adjustable (OFF, up to 160%) ground-fault protection IG=0.2… 1xIn, tg=0.05-0.8s cable connection on two sides | ||||
| Product family | 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC | ||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||
| Price data | |||||
| Price Group | 12P | ||||
| List Price | Show prices | ||||
| Customer Price | Show prices | ||||
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) | ||||
| Metal Factor | LPB—– | ||||
| Delivery information | |||||
| Export Control Regulations | AL : N / ECCN : EAR99 | ||||
| Standard lead time ex-works | 20 Day(s) | ||||
| Net Weight (kg) | 23,298 Kg | ||||
| Packaging Dimension | 250,00 x 360,00 x 180,00 | ||||
| Package size unit of measure | MM | ||||
| Quantity Unit | 1 Piece | ||||
| Packaging Quantity | 1 | ||||
| Additional Product Information | |||||
| EAN | 4042949440222 | ||||
| UPC | Not available | ||||
| Commodity Code | 85362090 | ||||
| LKZ_FDB/ CatalogID | LV10 | ||||
| Product Group | 5383 | ||||
| Group Code | P360 | ||||
| Country of origin | Mexico | ||||
| Compliance with the substance restrictions according to RoHS directive | Since: 09.06.2020 | ||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit. | ||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||||
| SCIP number | Not available | ||||
| Classifications | |||||
